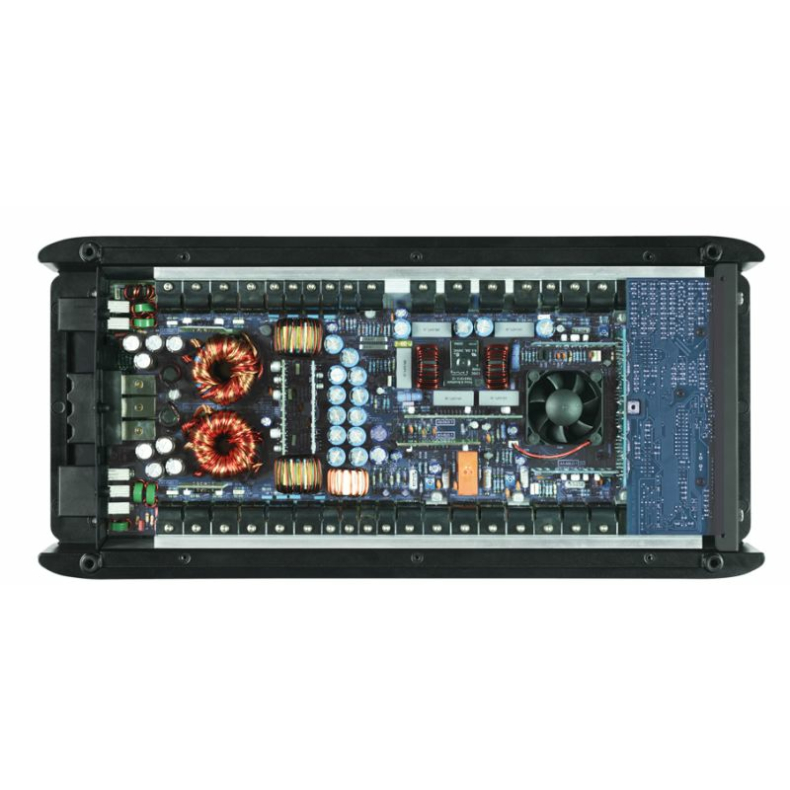

Audison AV quattro

Описание

Output power @ 4Ohm, 1% THD+N, 14.4 V: 120 W x 4 Ch
SN ratio (ref. 1 W output): 80 dBA
Inputs: Pre IN / Speakers IN
Outputs: Pre OUT Full Range
A Ch & B Ch Filters (Full / Hi-Pass / Lo-Pass):
50 ÷ 50k Hz (2 range) @ 12 dB/Oct.
B Ch Filter (Lo-Pass 24 dB mono):
50 ÷ 500 Hz @ 24 dB/Oct.
Distortion – THD (1kHz @ 4Ohm): 0.04 %
Bandwidth (-3 dB): 4 - 60k Hz
S/N ratio (A weighted @ 1V): 100 dBA
Damping factor (1k Hz @ 4Ohm): 100
Input sensitivity: 0.3 - 5 V RMS
Input impedance: 15k Ohm
Speaker-In sensitivity: 1.4 - 24 V RMS
Speaker-In impedance: 5kOhm
Minimum load impedance: 2Ohm
NOMINAL POWER (RMS) @ 12 VDC, THD 0.3%, 4Ohm: 100 W

OUTPUT POWER (RMS) @ 14.4 VDC,THD 1%:
• 4 Ch: 120 W x 4 (4Ω)
• 4 Ch: 200 W x 4 (2Ω)
• 4 Ch: 120 W x 2 (4Ω) + 200 W x 2 (2Ω)
• 3 Ch: 120 W x 2 (4Ω) + 400 W x 1 (4Ω)
• 3 Ch: 200 W x 2 (2Ω) + 400 W x 1 (4Ω)
• 2 Ch: 400 W x 1 (4Ω) + 400 W x 1 (4Ω)
