Helix IK W6 SVC2

Helix IK W6 SVC2

139.00 лв.

In stock
0 out of 5
( Все още няма отзиви. )

139.00 лв.

6.5″ (16.5см) субуфер Helix / 150W RMS / 300W Max / с включена предпазна решетка

Марка:
Категории: ,
Преглед на количката

Описание

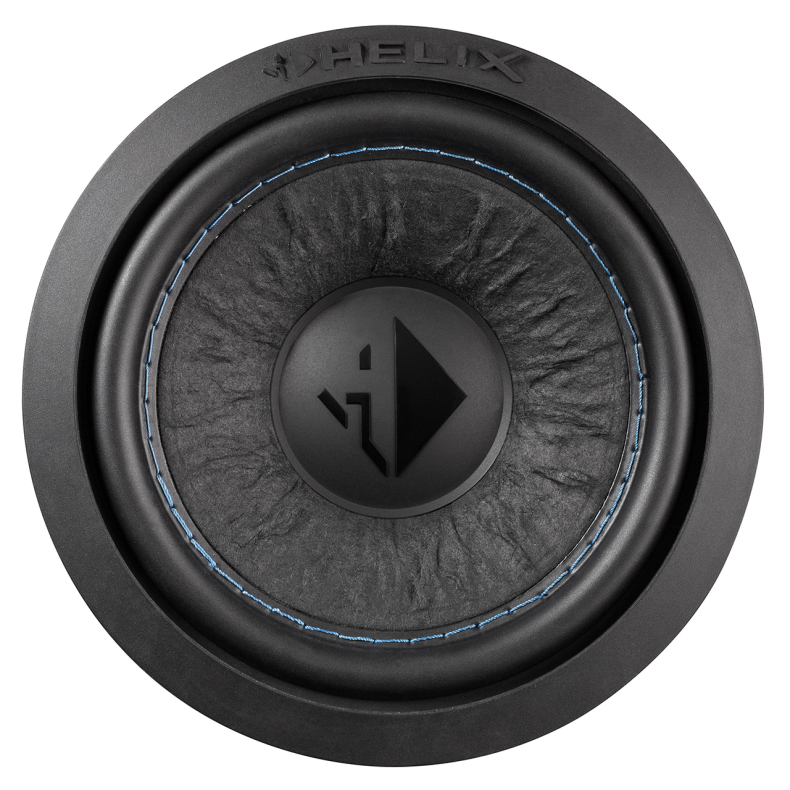

Субуфер Helix IK W6 SVC2, 16.5 см, 150W RMS, 300W Max, 1 x 2Ohm

The chassis of the K subwoofer series can all be used in very compact enclosures in which they perform magnificently with exceptional bass performance. Especially when it comes to using the available space in the vehicle as good as possible due to an individual enclosure design, these woofers open up completely new possibilities for installation without making any acoustic compromises.

The extremely stiff cone made of hand-scooped paper fibers in connection with the heavy-duty driver system not only converts amplifier power easily and without compression effects into loads of sound pressure, but also scores sonically with subtle beats.

Designed as a 1 x 2 Ohms (SVC2) or 2 x 2 Ohms (DVC2) variant, you can find the right low bass specialist for any amplifier configuration to get the maximum performance out of it.

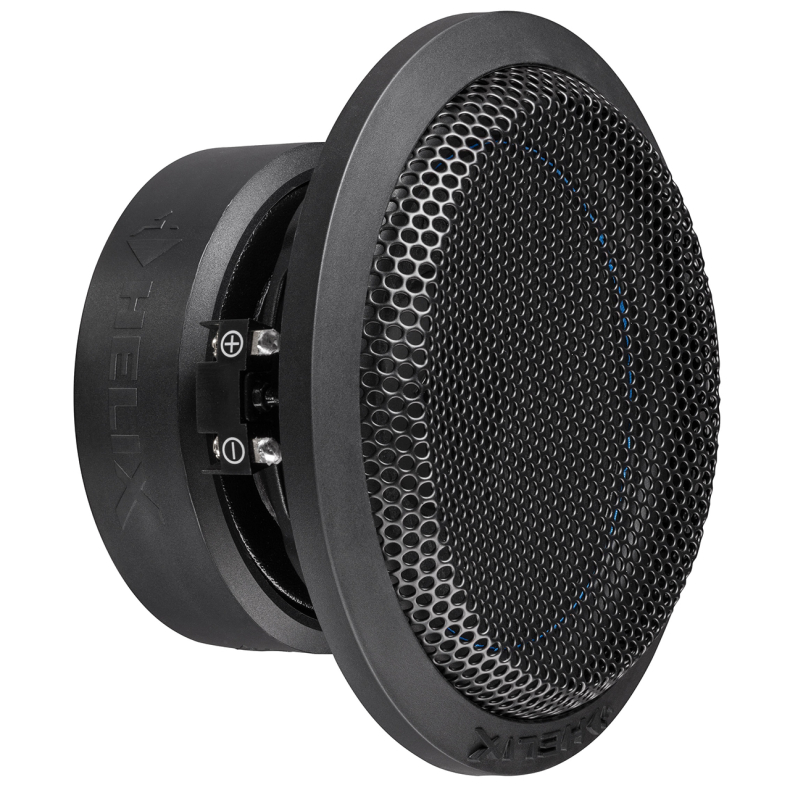

In addition, the solid protective grille and gasket are also included.
For optimal bass performance in DIY installations you can find recommendations for sealed and vented enclosures with all parameters such as net volume, port tuning frequency as well as DSP settings in our technical data sheet.

Характеристики

  • – Предпазна решетка и уплътнение включени в комплекта
  • – Предпазен гумен пръстен с Helix лого върху магнитната система
  • – Позлатени терминали за максимална проводимост
  • – Long-excursion rubber surround for highest mechanical rating
  • – Double ventilated voice coil for minimum compression effects and high power handling
  • – Extremely stiff, hand-scooped paper cone
  • – Powerful magnet system for compact vented enclosures
  • – 1 x 2 Ohms single voice coil

Технически данни

  • – Installation diameter ø 132.5 mm / 5.22″
  • – Outer diameter ø 164.2 mm / 6.46″
  • – Max. linear excursion Xmax +/- 6.0 mm
  • – Voice coil winding height 18 mm
  • – Voice coil diameter ø 37 mm
  • – Mechanical resistance Rms 1.66 kg/s
  • – Cone material Hand-scooped paper cone
  • – Moving mass Mms 23 g
  • – Cone area Sd 129 cm²
  • – Sensitivity SPL 93.0 dB @ 2.83V / 1m
  • – Force factor B*I 6.4 Tm
  • – Equivalent air volume Vas 11.4 L
  • – Compliance Cms 544 μm/N
  • – Total Q factor Qts 0.30
  • – Electrical Q factor Qes 0.33
  • – Mechanical Q factor Qms 3.85
  • – Resonance frequency Fs 48 Hz
  • – DC resistance Re 2.0 Ω
  • – Impedance Z 1 x 2 Ω

Какво има в кутията

1 x суббуфер Helix IK W6-SVC2
1 x предпазна решетка
1 x уплътнение
1 x информационен лист

Допълнителна информация

RMS мощност

Пикова мощност

Размер

Съпротивление
