Описание
Shallow design – rich bass
The K 10S is the ultimate problem solver when it comes to realizing particularly flat and compact enclosure designs. Its extremely low installation depth opens up completely new possibilities for installation without making any acoustic compromises. Thanks to its large double voice coil and low resonance frequency, the K 10S doesn’t need to hide from woofers with greater installation depth when it comes to bass performance.
Smart down to the very last detail
The extremely stiff sandwich paper cone in connection with the heavy-duty dual voice coil not only converts amplifier power easily and without compression effects into loads of sound pressure, but also scores sonically with subtle beats.
A special highlight: the magnet system has a threaded hole on the back and thus allows the woofer to be fixed to the back panel of the enclosure. In this way, housing vibrations can be effectively reduced even with thin walls, because with flat constructions every millimeter of construction depth counts.
Features

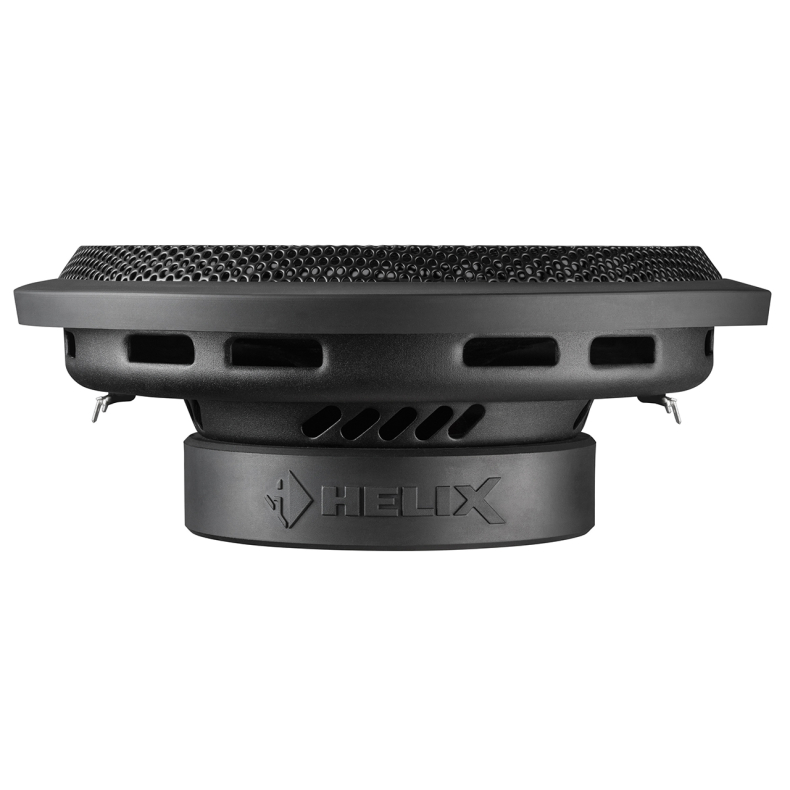

Chassis with particularly low installation depth – optimized for compact and shallow enclosure constructions
2 x 2 Ohms dual voice coil for flexible system configuration
Magnet system with a threaded hole on the back – allows screwing to the back panel of the enclosure for stabilization and reduction of enclosure vibrations
Rugged magnet cover with HELIX lettering for perfect magnet protection
Extremely stiff sandwich paper cone
Long-excursion rubber surround for highest mechanical rating

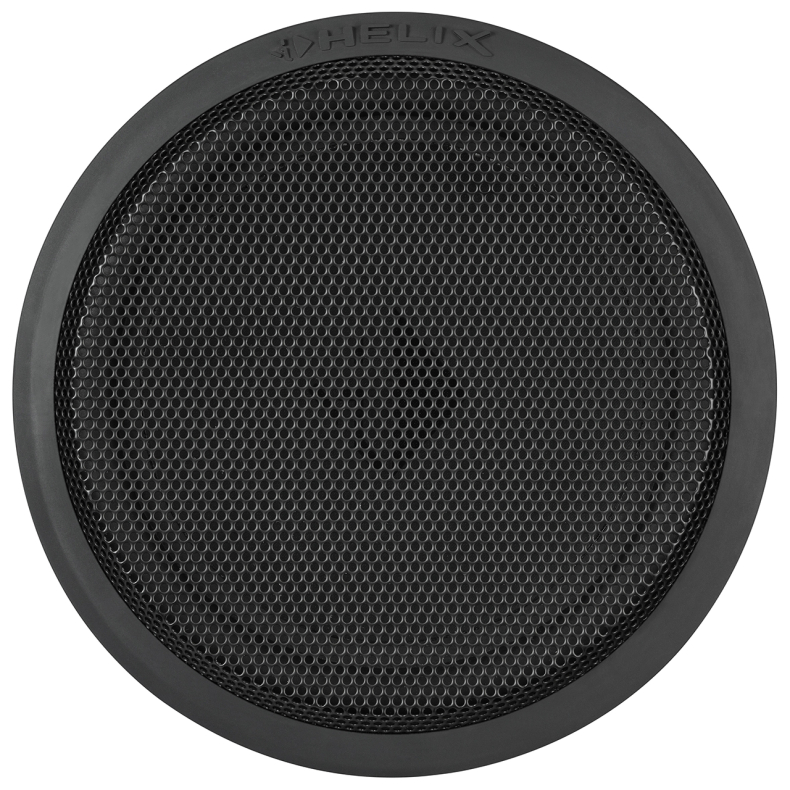

Enclosure connection terminal, grille, and gasket included in delivery
| Power RMS / max. | P | 300 / 600 Watts |
| Impedance | Z | 2 x 2 Ω |
| DC resistance | Re | 2 x 1.6 Ω |
| Resonance frequency | Fs | 34 Hz |
| Mechanical Q factor | Qms | 6.37 |
| Electrical Q factor | Qes | 0.49 |
| Total Q factor | Qts | 0.45 |
| Compliance | Cms | 198 μm/N |
| Equivalent air volume | Vas | 34 L |
| Force factor | B*I | 12.7 Tm |
| Efficiency 1 W / 1 m | SPL | 87.0 dB |
| Cone area | Sd | 353 cm² |
| Moving mass | Mms | 112 g |
| Cone material | Sandwich paper cone | |
| Mechanical resistance | Rms | 3.73 kg/s |
| Voice coil diameter | ø | 50.8 mm |
| Voice coil winding height | 19 mm | |
| Max. linear excursion | Xmax | +/- 6.0 mm |
| Outer diameter | ø | 262 mm / 10.31″ |
| Installation diameter | ø | 229 mm / 9.01″ |
| Installation depth | 84.5 mm / 3.33″ | |
| Recommended enclosure volumes | ||
| Sealed box | ||
| Net volume | 14 L | |
| Lower limiting frequency (-3dB) | 46 Hz | |
| Recommended DSP settings | Recommended „self-define“ highpass filter with 45 Hz cut-off frequency and Q = 1.3; additional EQ filter 100 Hz / Q = 1.0 / -3 dB |
|
| Vented box | ||
| Net volume | 16 L | |
| Port diameter | ø | 70 mm / 2.76″ |
| Port area | 38 cm² | |
| Port length | 38 cm / 14.96″ | |
| Port tuning frequency | Fb | 37 Hz |
| Lower limiting frequency (-3dB) | 39 Hz | |
| Recommended DSP settings | Recommended „self-define“ highpass filter with 37 Hz cut-off frequency and Q = 1.2; additional EQ filter 95 Hz / Q = 0.7 / -3 dB |

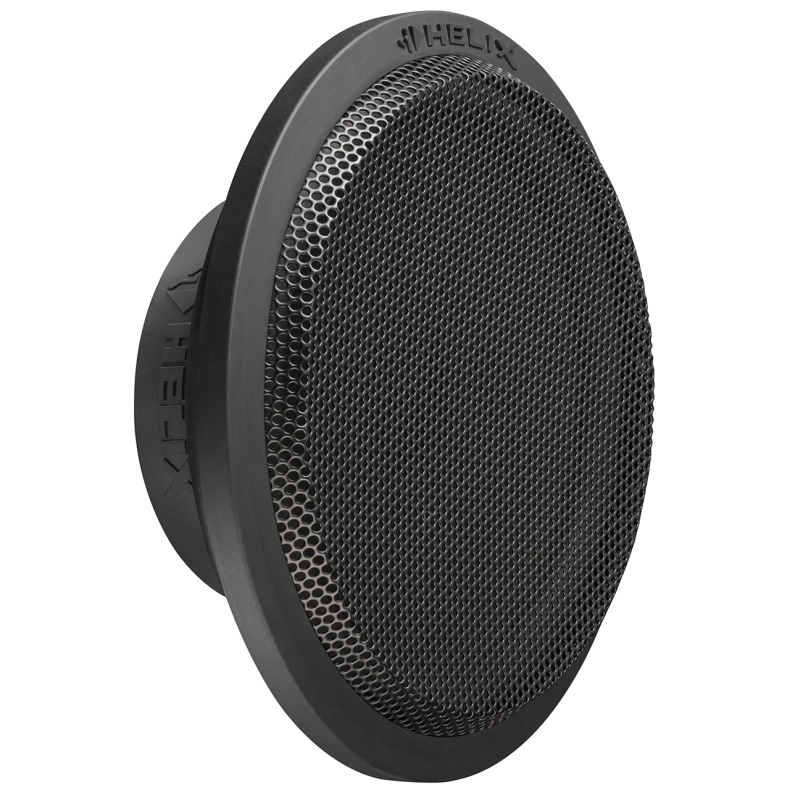

| Subwoofer Helix K 10S |
