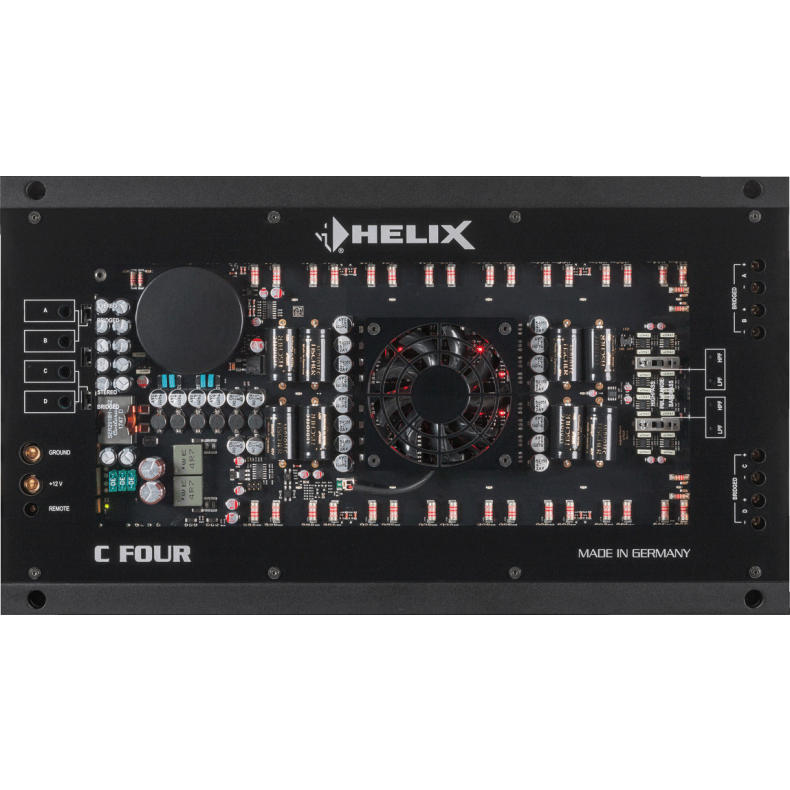

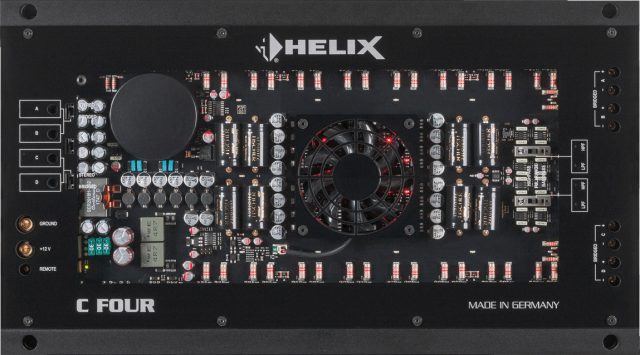

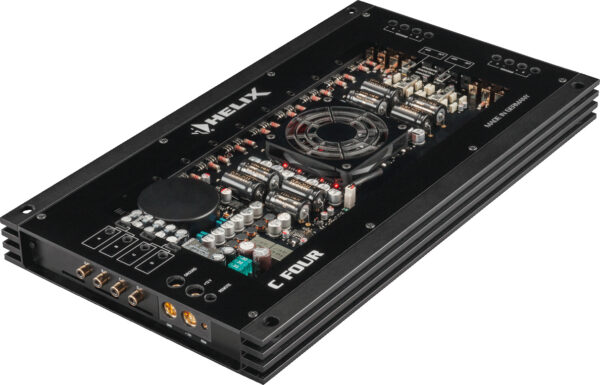

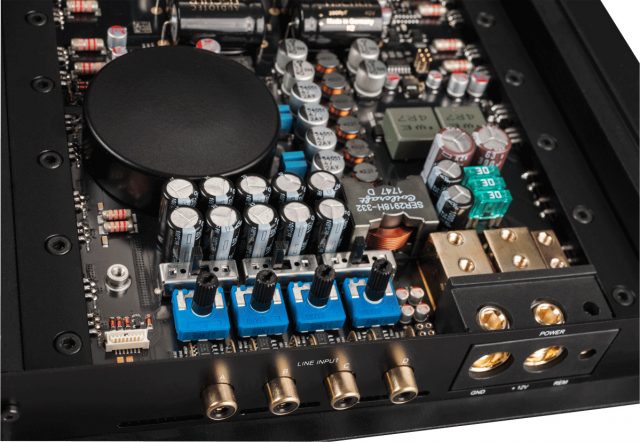

Усилвател Helix C Four

Описание

Output power RMS / max.
– @ 4 Ohms 4 x 150 / 300 Watts
– @ 2 Ohms 4 x 220 / 440 Watts
– @ 1 Ohm     –
– bridged @ 4 Ohms 2 x 440 / 880 Watts
– bridged @ 2 Ohms     –
Amplifier technology     Class AB

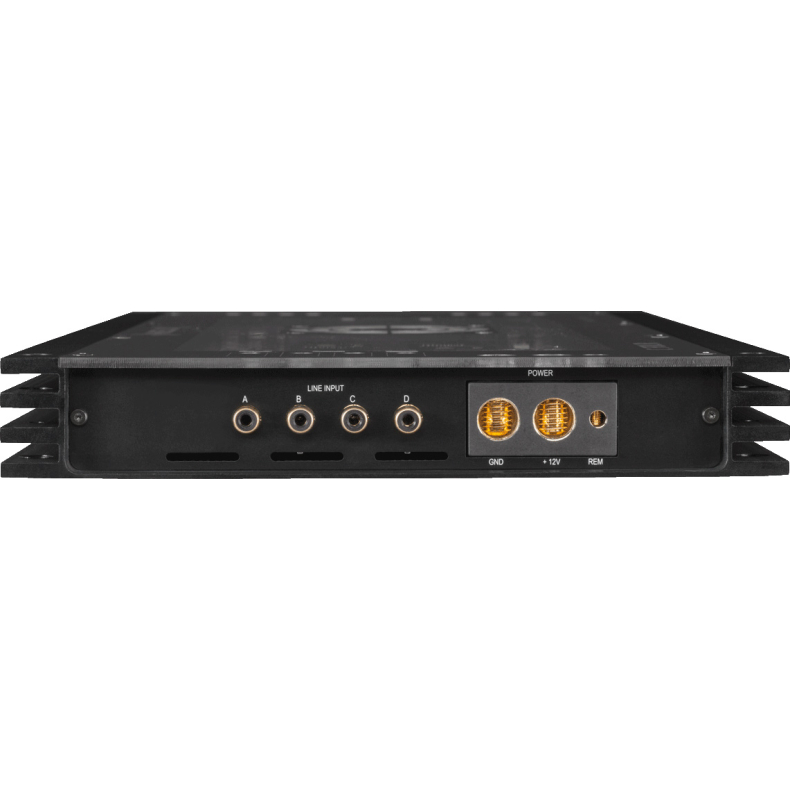

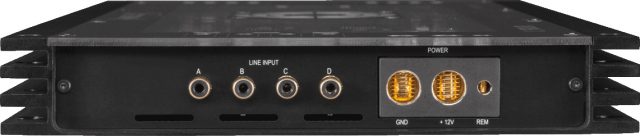

Inputs     4 x RCA / Cinch
1 x Remote In
Optional via HDM 2 module:
2 x Optical SPDIF (28 – 96 kHz)
Input sensitivity RCA / Cinch 1 – 8 Volts
Input impedance RCA / Cinch 7.5 kOhms
Input impedance highlevel –

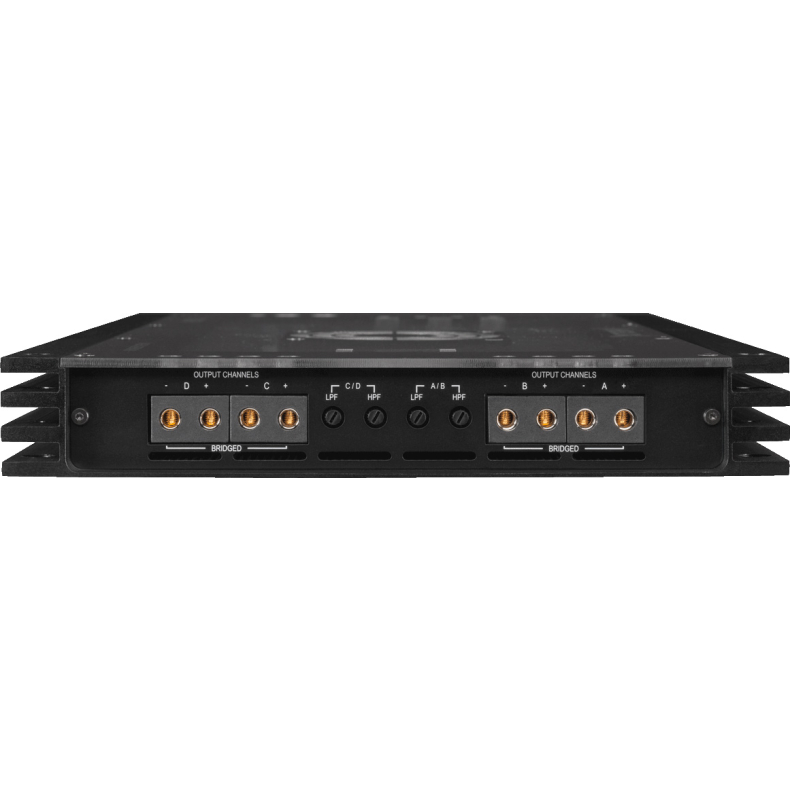

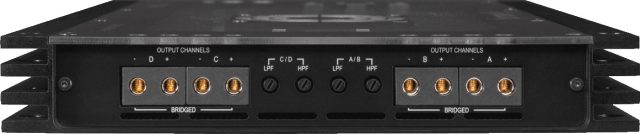

Outputs 4 x Speaker output
Output voltage RCA / Cinch –
Signal converter for digital input –
Frequency response 10 Hz – 80,000 Hz
Bass boost –
Highpass 15 Hz – 4,000 Hz adjustable
Lowpass 15 Hz – 4,000 Hz adjustable
Bandpass 15 Hz – 4,000 Hz adjustable
Subsonic     –
Phase –
Slope high- / lowpass 12 dB/Oct.
Slope subsonic / lowpass     –
Signal-to-noise ratio digital input –
Signal-to-noise ratio analog input 112 dB (A-weighted)
Distortion (THD) < 0.007 %
Damping factor > 1000
Operating voltage 9 – 16 Volts  (max. 5 sec. down to 6 Volts)
Idle current     2400 mA
Fuse 3 x 30 A LP-Mini-fuse (APS)
Additional features Active, adjustable crossover, HDM slot, input mode switch, High-Resolution audio, Start-Stop capability
Dimensions (H x W x D)     37.1 x 430 x 240 mm /
