Plug & Play Power for Multi-Channel Factory Sound Systems

The MATCH PP 86DSP MK2 seamlessly continues the successful story of its predecessor while implementing several upgrades. As a high-performance 8-channel amplifier with a 1-channel line output and an integrated 9-channel DSP with 64 Bit power, it’s perfectly suited for audiophile upgrades of multi-channel factory sound systems, conveniently providing an impressive sound experience.

Seamless Integration and Impressive Connectivity

The MATCH Plug & Play concept ensures seamless integration with factory systems, which was uncompromisingly realized in the PP 86DSP MK2. With its impressive 2 Ohms stability across all amplifier channels, it effortlessly connects to nearly all OE speakers, while optional cable harnesses significantly facilitate integration into existing multi-channel factory sound systems. Furthermore, the MATCH PP 86DSP MK2 boasts enhanced connectivity, featuring an intelligent 6-channel highlevel input with the ADEP.3 circuit and a MEC slot for system expansions such as Bluetooth® HD audio streaming. It also includes a 1-channel mono line output for connecting external amplifiers like the Match UP 1FX and an optical input in SPDIF format with a sampling rate between 12 and 96 kHz. Last but not least, it also comes with our SCP port for optional accessories like the Director, Conductor etc.

Virtual Channel Processing – The Modern Way of Signal Routing

The optimal adaptation to existing multi-channel sound systems requires sensible management and configuration of the many DSP channels – so it was no question that the PP 86DSP MK2 is also equipped with Audiotec Fischer’s innovative virtual channel processing. Especially when front, rear and center systems are split into multi-way systems, conventional routing concepts quickly reach their limits, both in terms of implementation and usability. The multi-stage „Virtual Channel Processing“, in conjunction with the recognized user-friendly DSP PC-Tool software makes it easy to map even highly complex system configurations and to freely assign our proprietary FX sound features. Additionally, thanks to its generous number of channels in combination with the optional MEC Analog IN module, the PP 86DSP MK2 is also a prime example for applications where 1 to 1 routing (IOR) makes sense.

ACO – Advanced 32 Bit CoProcessor Plattform

Of course, the PP 86DSP MK2 is equipped with our proprietary 32 Bit ACO platform, which doesn’t just take over all control tasks ultra-fast, but also handles a bunch of audio functions: fantastic sound effects such as Augmented Bass Processing or Real Center are implemented as well as a channel-separated Input EQ including Input Signal Analyzer (ISA) for easy analysis and compensation of input signals of OE radios, which already include a sound setup by default.

DSP PC-Tool 5 feat. TuneEQ – Powerful features for the ultimate sound experience

Of course, the MATCH PP 86DSP MK2 can be easily configured via our professional and exceptionally intuitive DSP PC Tool 5. The familiar, numerous setting options leave nothing to be desired and guarantee an extremely precise sound adjustment even for complex system configurations. And thanks to the proprietary TuneEQ function for automated frequency response correction, you also save a lot of time when optimizing your sound.


  • – Ултра ефикасен 8-канален усилвател с 1 RCA изход и вграден 9-канален DSP
  • – Отличен избор за ъпгрейд на мултиканални фабрични аудио системи
  • – Стабилен при 2Ohm и 4Ohm на всички канали – безпроблемно свързване към почти всеки фабричен говорител
  • – Опционални Plug&Play кабели за свързване към фабрични многоканални аудио системи
  • – Extremely powerful 64 Bit “fixed point” Audio DSP
  • – Втори 32-битов процесор ACO за допълнителни DSP възможности
  • – ISA (Input Signal Analyzer) и InputEQ за лесен анализнг и корекция на входния сигнал
  • – TuneEQ функция с автоматична настройка на еквалайзера на изходните канали
  • – SFX (DSP Sound Effects) – Augmented Bass Processing, RealCenter & Co
  • – Интелигентен 6-канален вход по високо ниво с ADEP.3 електроника и входна чувствителност от 5 до 11V
  • – Virtual Channel Processing (VCP) позволява дори по-голяма гъвкавост при конфигурацията на сложни аудио системи
  • – Match разширителен слот (MEC) за допълнителни входни модули като Bluetooth® Audio Streaming, свързване на смартфон чрез USB
  • – Оптичен вход в SPDIF формат със sampling rates между 12 и 96 kHz
  • – Mono RCA изход за свързване на допълнителен усилвател за суббас
  • – SCP (Smart Control Port) за свързване на допълнително дистанционно управление като Helix Director, Conductor и други
  • – Start-Stop захранване с разширен диапазон до 18V – пълна съвместимост със съвременните електрически автомобили
  • – Auto Remote switch
  • – Компактен дизайн с ниско топлоотделяне благодарение на високата си ефективност

Технически данни

  • – Output power RMS – @ 4 Ohms 8 x 55 Watts
  • – Output power RMS – @ 2 Ohms 8 x 70 Watts
  • – Технология Class HD

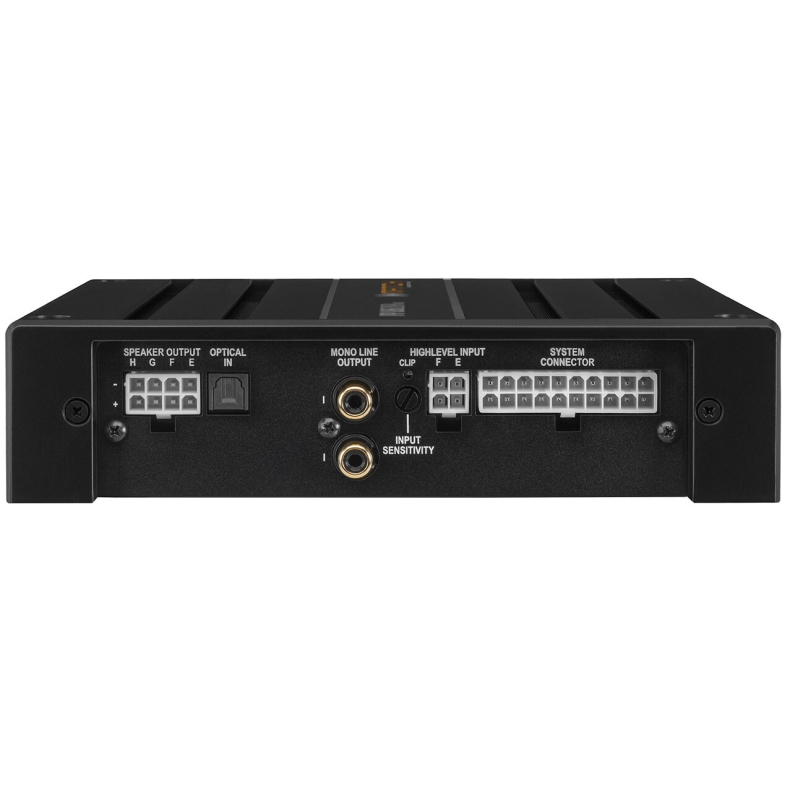

  • – Inputs 6 x Highlevel speaker input, 1 x Optical SPDIF (12 – 96 kHz), 1 x MEC, 1 x Remote In
  • – Input sensitivity 5-11 Volts
  • – Input impedance highlevel 9 – 33 Ohms with ADEP.3
  • – Outputs 8 x Speaker output 2 x RCA / Cinch (mono) 2 x Remote Out
  • – Output voltage RCA / Cinch 3 Volts RMS
  • – Frequency response 20 Hz – 22,000 Hz
  • – DSP resolution 64 Bit
  • – DSP power 295 MHz (1.2 billion MAC operations/second)
  • – Sampling rate 48 kHz
  • – DSP type Audio signal processor
  • – Signal converters A/D: BurrBrown D/A: BurrBrown
  • – Signal-to-noise ratio digital input > 105 dB (A-weighted)
  • – Signal-to-noise ratio analog input 103 dB (A-weighted)
  • – Distortion (THD) < 0.015 %
  • – Damping factor > 100

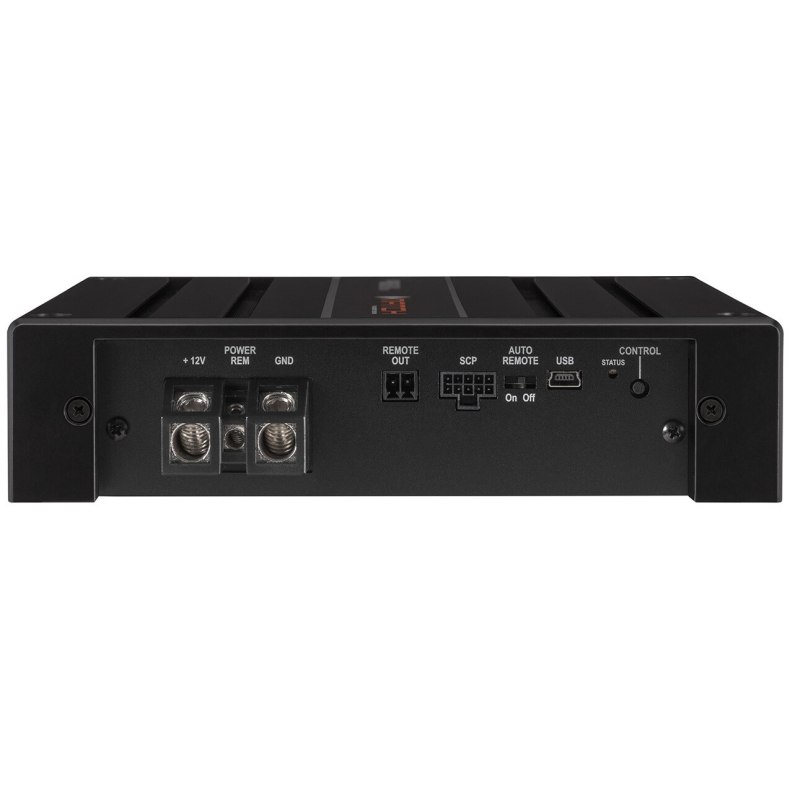

  • – Operating voltage 10.5 – 18 Volts (max. 5 sec. down to 6 Volts)
  • – Power rating DC 12 V ⎓ 40 A max.
  • – Idle current 685 mA
  • – Max. remote output current 500 mA
  • – Работна температура (-40°C до 70°C)
  • – Fuse 2 x 25 A LP-Mini-fuse (APS)
  • – Dimensions (H x W x D) 44 x 185 x 164 mm

Какво има в кутията

1 x усилвтел MATCH PP 86DSP MK2
3 x свързващи кабели
1 x USB кабел
1 x крепежни елементи
1 x инструкция
