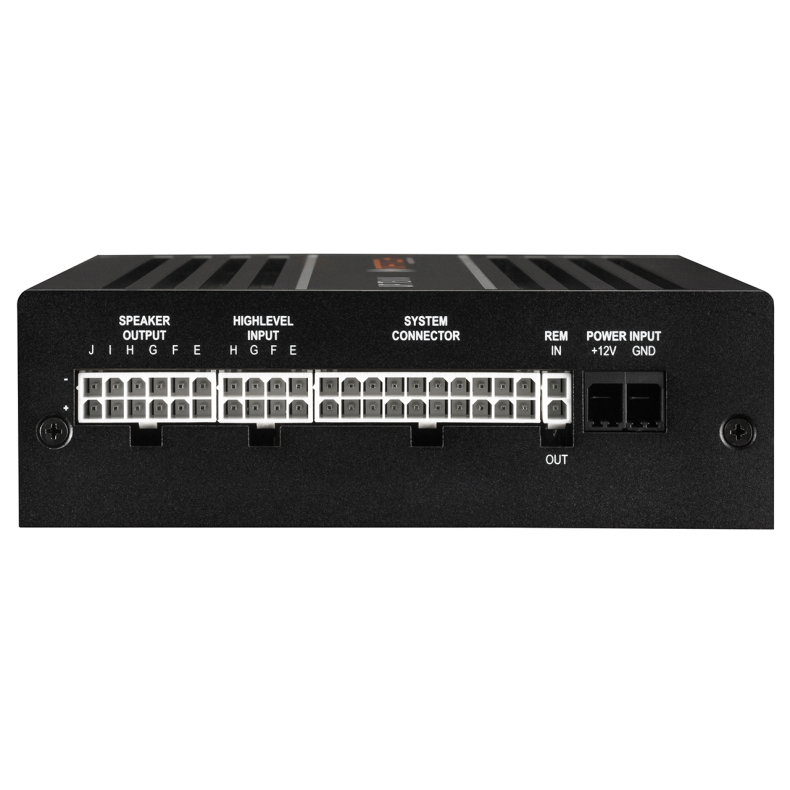

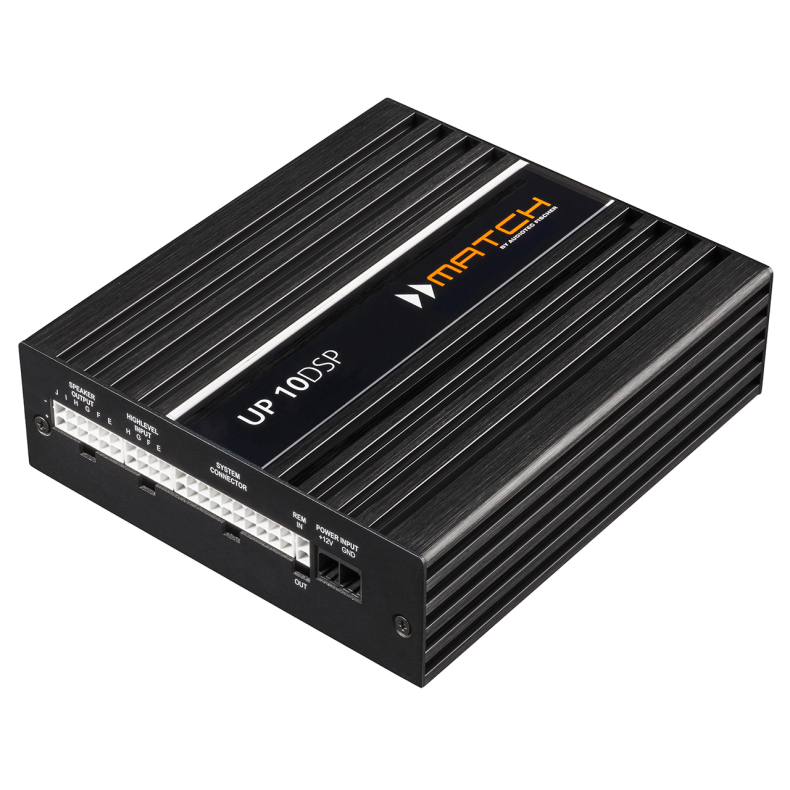

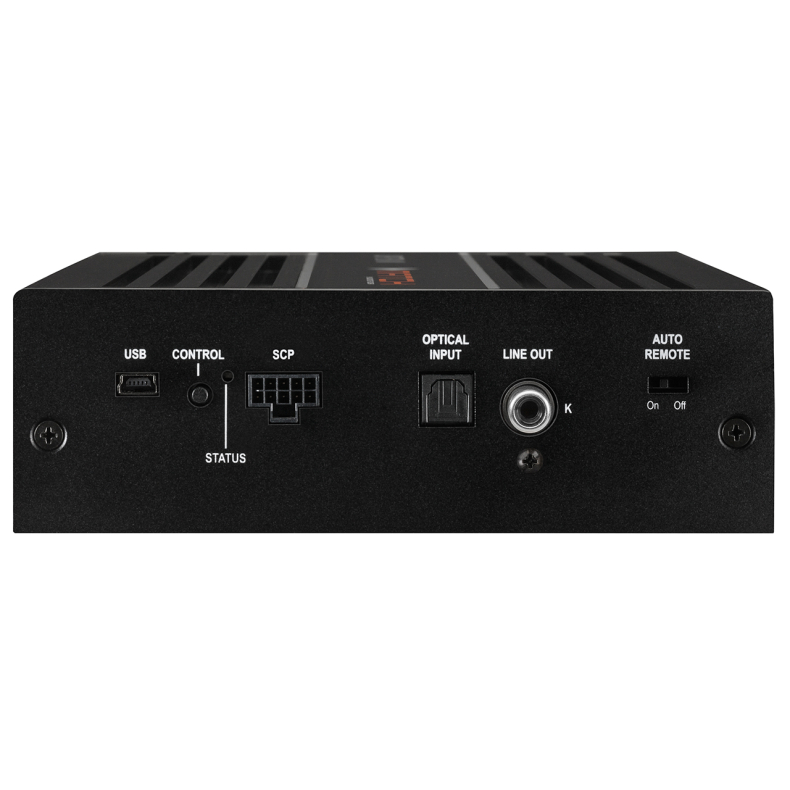

Match UP 10DSP

Match UP 10DSP

1,499.00 лв.

In stock

1,499.00 лв.

Една от основните идеи при създаването на Match UP 10DSP е сериозен аудио ъпгрейд над фабрични Premium аудио системи като Harman Kardon в BMW и Burmester в Mercedes. Инсталацията на Match UP 10DSP в тези автомобили се осъщестява чрез специализирани Plug&Play кабели без да се нарушава и кабел от инсталацията на автомобила.
Plug&Play кабел за BMW с Harman Kardon и RAM модул след 2019г
Plug&Play кабел за Mercedes с Burmester

Характеристики: Match UP 10DSP

  • Ultra efficient 10-channel amplifier with 1-channel line output and 11-channel DSP
  • Perfect for upgrading multi-channel factory sound systems
  • Optional cable harnesses for easy integration into existing multi-channel factory sound systems
  • Extremely powerful 64 Bit “fixed point” Audio DSP
  • ACO – Advanced 32 Bit CoProcessor platform for system and DSP features like:
    • ISA (Input Signal Analyzer) and InputEQ for easy analysis and compensation of input signals
    • SFX sound effects – Augmented Bass Processing, StageXpander, RealCenter & Co.
  • High power 8-channel highlevel input with ADEP.3 circuit – two channels with up to 32 V RMS input sensitivity
  • 1 to 1 Input / Output Routing (IOR) in combination with the optional MEC ANA-LOG IN module – same number of highlevel inputs and amplifier outputs
  • Virtual Channel Processing (VCP) allows even more flexible configuration for highly complex sound systems
  • MATCH Extension Card slot (MEC) for additional input / output modules like Bluetooth® Audio Streaming, High Resolution Audio Streaming via USB etc.
  • Optical input in SPDIF format with sampling rate between 12 and 96 kHz
  • Mono RCA output for the connection of an external amplifier e.g. subwoofer amplifier
  • SCP (Smart Control Port) for optional accessory like WIFI CONTROL, DIRECTOR, CONDUCTOR & Co.
  • Auto Remote switch
  • Start-Stop capability down to 6 Volts supply voltage
  • Compact design with low heat dissipation thanks to extraordinary efficiency
Марка:
купи на изплащане
12 x 146.13 лв.
Преглед на количката

Описание

Scope of delivery

1 x MATCH UPGRADE amplifier UP 10DSP
2 x Connection cable
1 x Control Input-to-SCP adaptor
1 x Mounting plates & material
1 x USB cable
1 x Instruction manual

Output power RMS
– @ 4 Ohms Channels A – H: 8 x 65 Watts
– @ 2 Ohms
– @ 1 Ohm
– bridged @ 4 Ohms
– bridged @ 2 Ohms
– Subwoofer output @ 4 Ohms Channels I – J: 2 x 90 Watts
– Subwoofer output @ 2 Ohms Channels I – J: 2 x 160 Watts
Amplifier technology Class GD
Inputs 8 x Highlevel speaker input
1 x Optical SPDIF (12 – 96 kHz)
1 x Remote In
Input sensitivity Channels A – F: 4 – 16 Volts
Channels G – H: 4 – 16 or 8 – 32 Volts
Input impedance RCA / Cinch
Input impedance highlevel 9 – 33 Ohms with ADEP.3
Outputs 10 x Speaker output
1 x RCA / Cinch
1 x Remote Out
Output voltage RCA / Cinch 3 Volts
Frequency response 20 Hz – 22,000 Hz
DSP resolution 64 Bit
DSP power 295 MHz (1.2 billion MAC operations/second)
Sampling rate 48 kHz
DSP type Audio signal processor
Signal converters A/D: BurrBrown
D/A: BurrBrown
Signal-to-noise ratio digital input 105 dB (A-weighted)
Signal-to-noise ratio analog input 103 dB (A-weighted)
Distortion (THD) < 0.03 %
Damping factor > 100
Operating voltage 10.5 – 17 Volts (max. 5 sec. down to 6 Volts)
Power rating DC 12 V ⎓ 60 A max.
Idle current 500 mA
Max. remote output current 500 mA
Fuse 2 x 25 A LP-Mini-fuse (APS)
Additional features Class GD technology with dynamically controlled
power supply, 32 Bit CoProcessor, ADEP.3 circuit, Start-Stop capability, Smart Control Port, USB, MEC slot, Auto Remote switch, galvanically isolated Line Out
Dimensions (H x W x D) 46 x 145 x 163 mm /
1.81 x 5.71 x 6.42″
