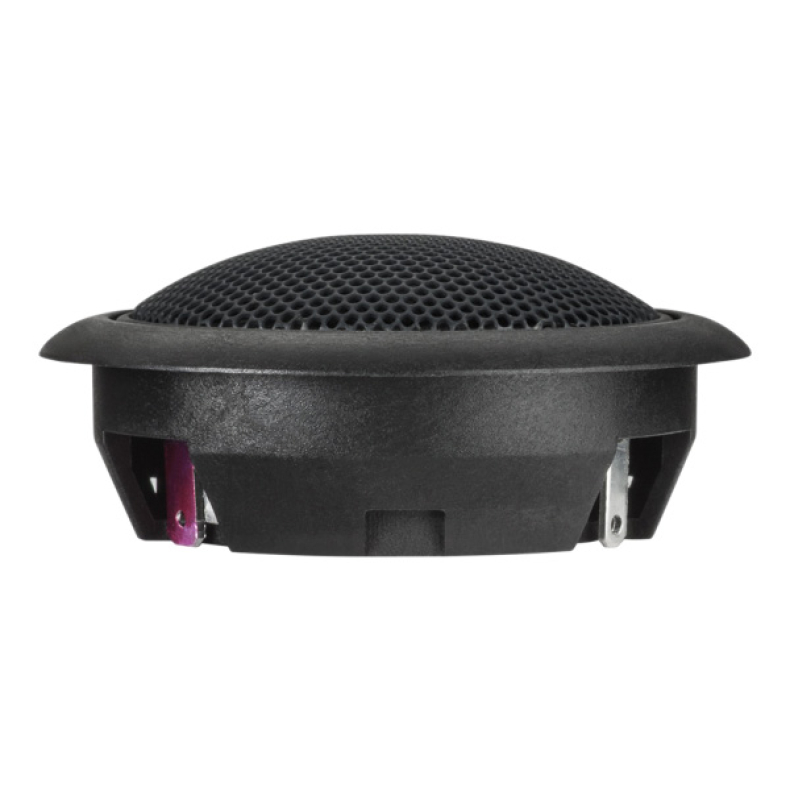

Helix P1T

Helix P1T

139.00 лв.

In stock

139.00 лв.

There’s definitely not much to say about this tweeter – the fantastic sonic performance thrills both the press and end-users since many years. Despite the decent appearance this driver is a „giant“ with respect to sound quality. Like its predecessor it easily outperforms competitor products and defines the standard in its class. Precision, resolution and tonality have a short and simple name – P 1T.

Features:

– 1″ / 25 mm tweeter with high efficient neodymium magnet and hand-coated silk dome for balanced, natural sound reproduction and lowest compression effects
– Including installation and mounting equipment
– Lowest possible production tolerances and solely use of best materials



Марка:
Преглед на количката

Описание

Power RMS / max.  P 100 / 200 Watts
(highpass > 3,000 Hz at 12 dB/Oct.)
Impedance  Z 4 Ω
DC resistance  Re 3.4 Ω
Frequency response   2,500 Hz – 25,000 Hz
Resonance frequency  Fs 1,500 Hz
Efficiency 1 W / 1 m SPL 91 dB
Voice coil diameter ø 25 mm
Cone area  Sd 4.9 cm²
Moving mass  Mms 0.3 g
Cone material   Silk dome
Outer diameter ø 58 mm / 2.28″
Installation diameter ø 49.3 mm / 1.95″
Installation depth   15 mm / 0.60″

Recommended crossover frequencies for the highpass
Slope  Minimum crossover frequency
6 dB/Octave  4,000 Hz
12 dB/Octave   > 3,000 Hz
24 dB/Octave  > 2,500 Hz
