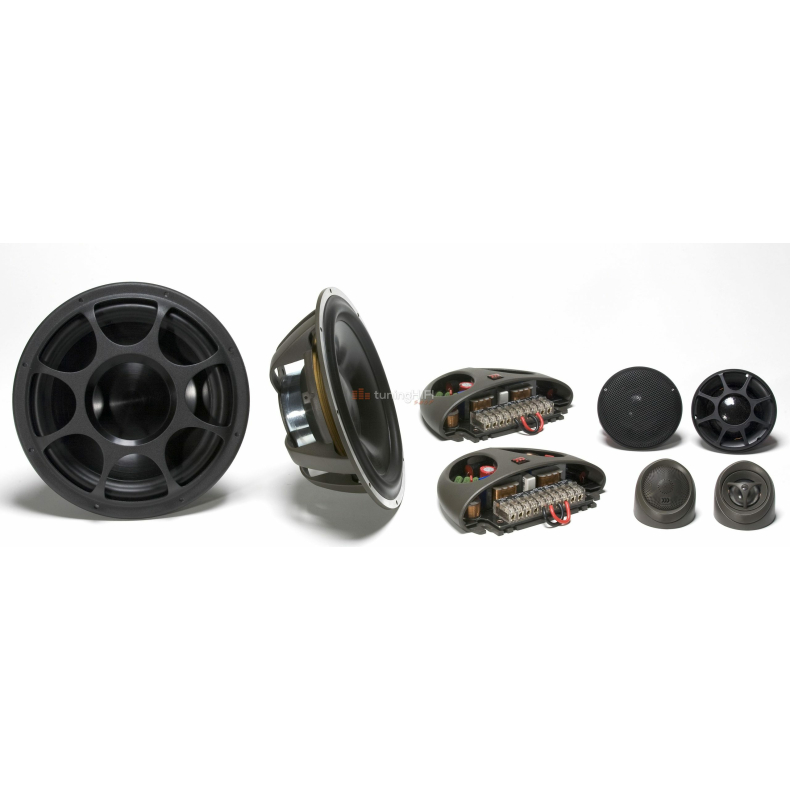

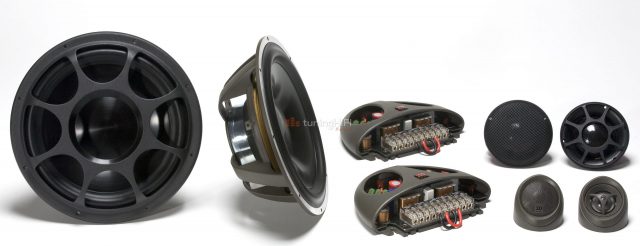

Говорители Morel Elate 603 3-WAY

The Elate has been recognized as an icon in car audio. Morel’s R&D engineered this series to combine precision, musicality and high power capability.

Defining the interaction between the system components and the acoustical challenges of a car is the key to success. The Elate Series features our MXR crossover topology for near perfect phase control and consistent transition between the drivers. New woofers continue to employ Morel’s C.A.R filter™ and 3-inch EVC™ with Hexatech™ technology, yet are now graced with a more powerful dual ferrite motor and a stiffer one-piece poly cone. Elate systems also receive the new MT250 hand-crafted Acuflex™ tweeter featuring a vented cavity design for improved transient and dynamic range, and the CDM880 Acuflex™ dome midrange.

When it all comes together, the new Elate series recreates a soundstage with astounding transparency and imaging, while being more musically dynamic than ever.
Nominal Impedance (Ohms) 4
Power Handling Wrms 180
Max. Trans.Pwr Handling Wrms 1000
Sensitivity (2.83V/1M) 88dB
Frequency Response Hz 30-4000
Resonant Freq. Fs Hz 43
Voice Coil Diameter mm (inch) 75
Voice Coil Height mm (inch) 14.50 (0.57)
Voice Coil Type/ Former Aluminum
Voice Coil Wire HexatechTM Aluminum
DC Resistance (Ohms) 3.6
Voice Coil Induct. @1 kHz (MH) 0.41
Magnet System Double magnet rear vented
HE-Magnetic Gap Height mm (inch) 5 (0.20)
B-Flux Density (T.M.) 0.66
BL Product/BXL 5.37
Max. Linear Ex./Xmax mm (inch) ±4.75mm (±0.2)
Suspension Compliance CMS – mm/N 0.81
Electrical Q Factor QES 0.57
QTS 0.44
QMS 1.87
Mech.Resistance RMS – Ohm/meter 2.41
Moving Mass MMS – gr 16.9
Equiv. Can Air Load VAS – L (cu.ft) 16.02 (0.56)
Effective Piston Area SD sq.cm (sq. inch) 119 (18.45)
Cone Type One-piece formed
Cone Material DPC
Unit Diameter mm (inch) 165 (6.50)
Mounting Depth mm (inch) 61 (2.40)
Mounting Cutout mm (inch) 141 (5.55)
Net Weight Kg (lb) 1.18 (2.60) MIDS CDM880 Nominal Impedance (Ohm) 4
Power Handling (WRms) 100
Max Transient Power Handling W (10ms) 300
Sensitivity (2.83V/1M) dB 91
Frequency Response Hz 450-6000
FS Hz 390
Voice Coil Diameter mm (inch) 54 (2.125)
Voice Coil Former Aluminum
Voice Coil Wire HexatechTM Aluminum
DC Resistance Ohm 3.5
Magnet System Neodymium Rear Vented
Dome Type AcuflexTM hand coated soft dome
Dome Material Silk
Unit Diameter mm (inch) 88.00 (3.50)
Mounting Depth mm (inch) 21.00 (0.83)
Mounting Cutout mm (inch) 75.50 (2.97)
Net Weight Kg(lb) 0.25 (0.55) TWEETERS MT250 Nominal Impedance (Ohm) 4
Power Handling (WRms) 100
Max Transient Power Handling W (10ms) 300
Sensitivity (2.83V/1M) dB 91
Frequency Response Hz 450-6000
FS Hz 390
Voice Coil Diameter mm (inch) 54 (2.125)
Voice Coil Former Aluminum
Voice Coil Wire HexatechTM Aluminum
DC Resistance Ohm 3.5
Magnet System Neodymium Rear Vented
Dome Type AcuflexTM hand coated soft dome
Dome Material Silk
Unit Diameter mm (inch) 88.00 (3.50)
Mounting Depth mm (inch) 21.00 (0.83)
Mounting Cutout mm (inch) 75.50 (2.97)
Net Weight Kg(lb) 0.25 (0.55) CROSSOVERS MXR380 Crossover Point W: 300Hz/12dB M:12dB/2200Hz/18dB T: 2200Hz/ 18dB Crossover Controls Tweeter+/- 2dB Mid -2dB Wiring Options Bi wire / Bi amp
