Hi-End мидбаси Brax Matrix ML6D

Hi-End мидбаси Brax Matrix ML6D

In stock

В продължение на години серията Brax Matrix е синоним на ненадминат звук. Уникалното „MicroSphere“ покритие на мембраната, което може да откриете и при Brax Matrix ML10 и Brax Matrix ML3, осигурява изключителна прецизност при възпроизвеждане на звука. Тази патентована технология включва керамични кухи сфери с диаметър само 75 μm в полиамиден слой, който се прилага върху мембраната. Покритието гарантира перфектен вътрешен дампинг, без да оказва неблагоприятно въздействие върху теглото на мембраната. Това иновативно покритие увеличава твърдостта и позволява на говорителя да свири с по-динамичен и подчертан диапазон.

In terms of design and technology, the BRAX philosophy is continued without exception:
The gentle, precious appearance reveals a number of smart details like the new, hemispherical shaped dust cap for an optimized frequency response in the upper midrange area, the perfectly linear magnet structure for lowest possible distortion, the multiple ventilated voice-coil for high power handling as well as the rigid and aerodynamically efficient die cast basket. Used as a provider of low-frequencies the ML6D finalizes audiophile sound concepts that are designed entirely for authentic musical reproduction and enjoyment.

As with every MATRIX product, each speaker set receives its unique serial number, which is recorded in our service database. The exclusive wooden box packaging emphasizes once again the high-end character of BRAX.

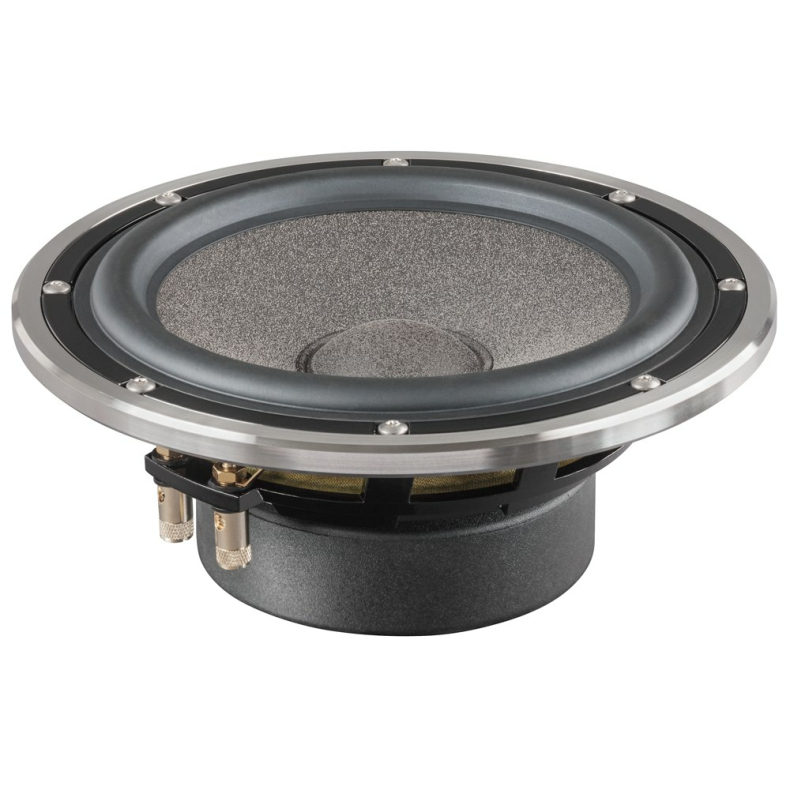

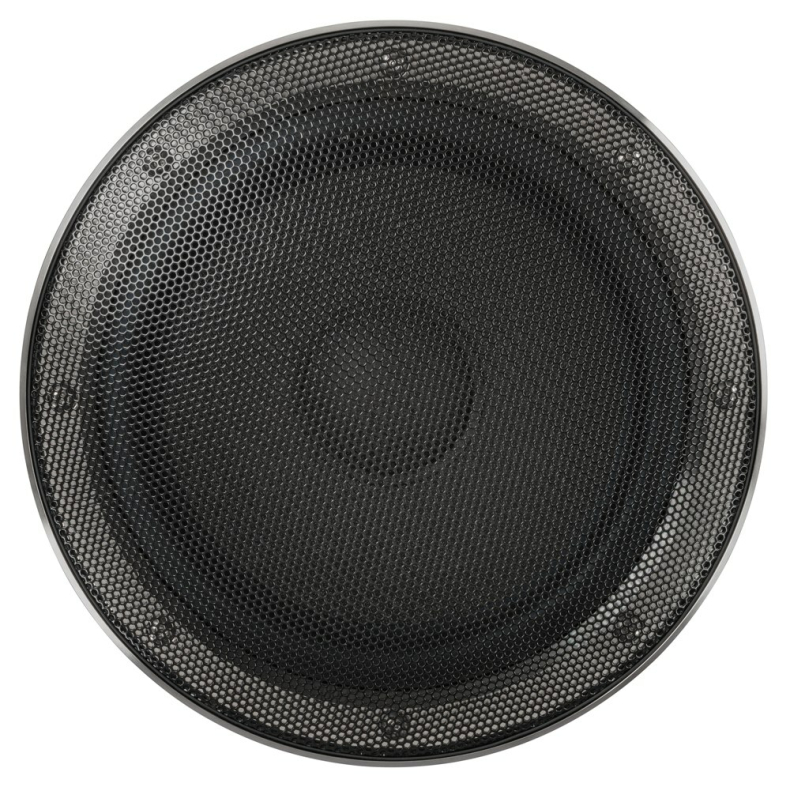

An optional stainless steel mounting ring set including grill (MR6) is also available. The solid stainless steel ring can either be used as mounting ring or grill support ring depending on your mounting position.

Features:

– Very stiff lightweight paper cone with unique “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer offers best possible impulse response without any sound colouration
– The new, hemispherically shaped dustcap optimizes the frequency response in the upper midrange area
– Special shaped rubber surround for long linear cone excursion
– Solid, 24 carat gold-plated terminals for maximum conductivity
– Aerodynamically shaped aluminum diecast basket with optimized voice coil ventilation
– Ultra-precise machined magnet system for highest magnetic flux linearity

Съдържание на доставката:

2 x High-End говорители BRAX MATRIX ML6D
1 x Свредло
1 x Отверка
1 x Магнитни винтове
1 x Сертификат
1 x Информационна брошура

Марка:
Категории: ,

Описание

Specifications
Power RMS / max.  P 120 / 170 Watts
Impedance Z 4 Ω
DC resistance Re 3,6 Ω
Resonance frequency Fs 49 Hz
Mechanical Q factor Qms 6.75
Electrical Q factor Qes 0.58
Total Q factor Qts 0.54
Compliance Cms 644 μm/N
Equivalent air volume Vas 16,8 L
Force factor B*I 5.6 Tm
Efficiency 1 W / 1 m SPL 88.0 dB
Cone area Sd 137 cm²
Moving mass Mms 16.1 g
Cone material   Paper cone with “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer
Mechanical resistance Rms 0.74 kg/s
Voice coil diameter ø 37 mm / 1.5″
Voice coil winding height   14 mm / 0.6″
Max. linear excursion Xmax +/- 4.0 mm
Outer diameter ø 167 mm / 6.5″
Installation diameter ø 143 mm / 5.6″
Installation depth   64 mm / 2.5″

Recommended enclosure volumes
Sealed box
Net volume   8 L
Lower limiting frequency (-3dB)   68 Hz

Vented box
Net volume   15 L
Port diameter ø 60 mm / 2.4″
Port area   28 cm²
Port length   19 cm / 7.5″
Port tuning frequency Fb 45 Hz
Lower limiting frequency (-3dB)   48 Hz
