Hi-End средночестотни Brax Graphic GL3

Hi-End средночестотни Brax Graphic GL3

In stock

It all started with a vision of Heinz Fischer, a passionate music lover and Audiotec’s founder, to transfer the sound experience of legendary high-end audio components into a car environment. No compromises in terms of design, technology and sound – following these principles our engineers focussed on exceptional sound quality and expanded the technological limits once again when they designed the new BRAX GRAPHIC speaker series. Outstanding components and unparalleled craftsmanship make the difference – of course solely made in Germany!

A perfect team with maximum tonal harmony
The high-end midrange driver GL3 is the next member of the successful BRAX GRAPHIC speaker series and the ideal complement for exceptional three-way constellations in combination with the tweeter GL1 and the mid-woofer GL6. Its lively, dynamic sound characteristics and its particularly wide frequency range make the GL3 ideal for an extraordinary acoustical experience.

MicroSphere – the material for maximum acoustic precision

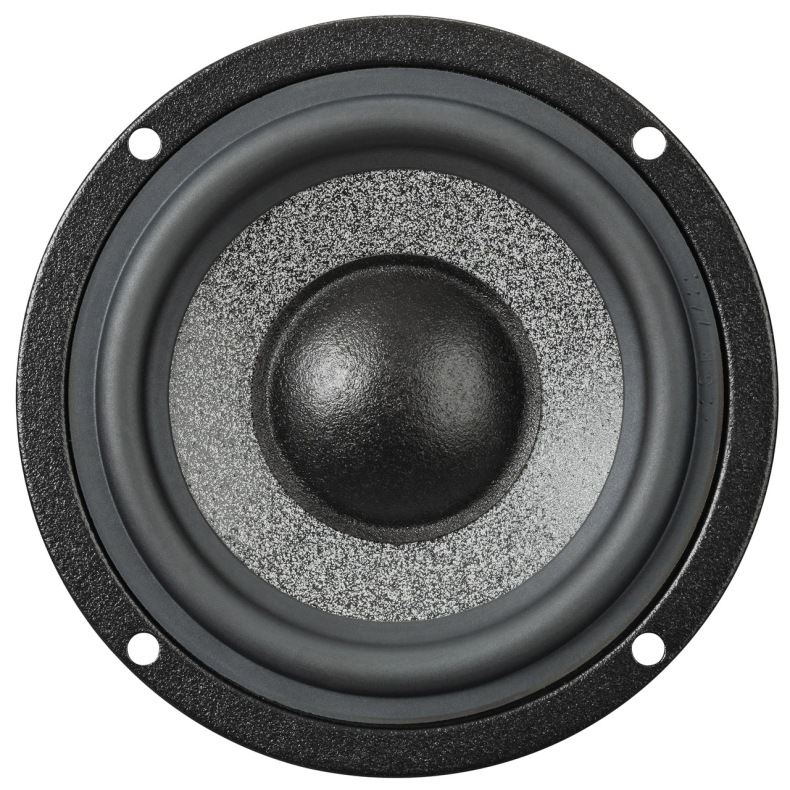

The centerpiece of this midrange is its particularly light paper cone with a modified „MicroShere“ coating. Its extremely precise and detailed reproduction harmonizes perfectly with the other speakers in the GRAPHIC series. This patented technology embeds ceramic micro hollow spheres with a mere diameter of 75 µm in a polyamide layer that is applied to the cone.

State-of-the-art technology

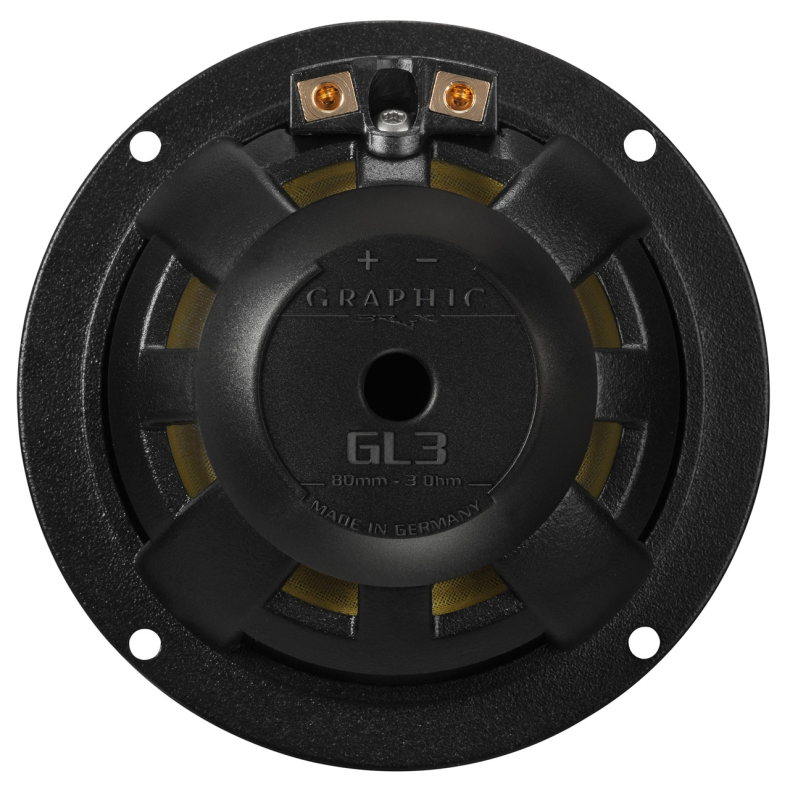

The cone is driven by a particularly linear neodymium magnet system, which is integrated into the aerodynamically sophisticated die-cast aluminium basket. The perfect ventilation of the long-stroke voice coil not only ensures excellent thermal stability, but also prevents compression effects right from the start. The soft rubber surround ensures an extremely low resonance frequency and thus the possibility of a low crossover frequency, ideally in fully active systems.

Details well-thought-out to the end
The love for every single detail manifests the GL3 as a BRAX transducer at reference level, which meets the highest tonal demands of any music lover. Typically for BRAX, each pair of speakers is given its own serial number and recorded in a service database. This high-end product – Made in Germany – is made perfect by the packaging in an elegant wooden box, which once again underlines the uncompromising philosophy of the BRAX brand.

– Изключително здрава и лека хартиена мембрана с уникално „MicroSphere“ покритие състоящо се от микрокерамични кухи сфери, вградени в полимерен слой
– Гумено окачване за плавен високочестотен roll-off
– Аеродинамично алуминиево лято шаси с оптимизирано охлаждане на намотката
– Промазана капачка на мембраната за оптимизирано възпроизвеждане на по-високите средни честоти
– Машинно изработен вентилиран неодимов магнит



Power RMS / max.  P 100 / 150 Watts
(highpass > 300 Hz at 24 dB/Oct.)
Impedance  Z 3 Ω
DC resistance  Re 2.9 Ω
Frequency response   250 Hz – 8.000 Hz
Resonance frequency  Fs 80 Hz
Mechanical Q factor  Qms 2.90
Electrical Q factor  Qes 0.29
Total Q factor Qts 0.26
Compliance Cms 1180 μm/N
Equivalent air volume Vas 1.95 L
Force factor  B*I 4.1 Tm
Efficiency 1 W / 1 m SPL 87 dB
Cone area  Sd 35 cm²
Moving mass  Mms 3.4 g
Cone material   Paper cone with “MicroSphere” coating consisting of micro ceramic hollow spheres embedded in a polymer layer
Mechanical resistance  Rms 0.62 kg/s
Voice coil diameter ø 25 mm / 1″
Voice coil winding height   6 mm / 0.2″
Max. linear excursion  Xmax +/- 1.5 mm
Outer diameter ø 92 mm / 3.6″
Installation diameter ø 76 mm / 3.0″
Installation depth   35.5 mm / 1.4″
Recommended enclosure volumes
Sealed box with minimum 250 ml net volume
Net volumes  Recommended DSP / amplifier settings
0.4 liter (System resonance: 200 Hz)  Crossover frequency: 350 Hz
Min. filter slope: 12 dB/Oct.
0.8 liter (System resonance: 155 Hz)  Crossover frequency: 300 Hz
Min. filter slope: 12 dB/Oct.
1.2 liter (System resonance: 140 Hz)

Note: The enclosure should always be filled with appropriate damping material.
