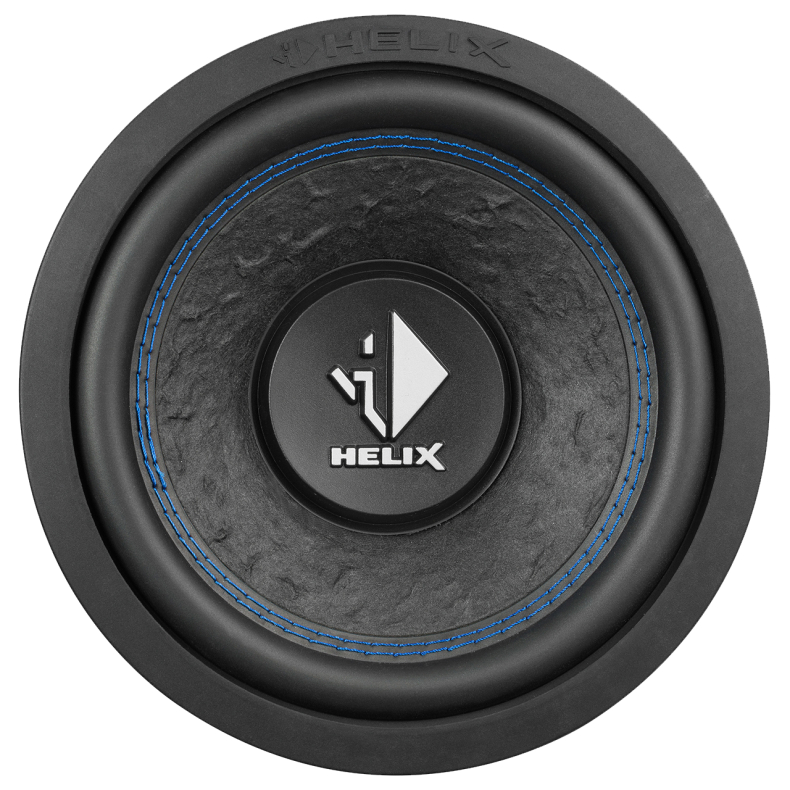

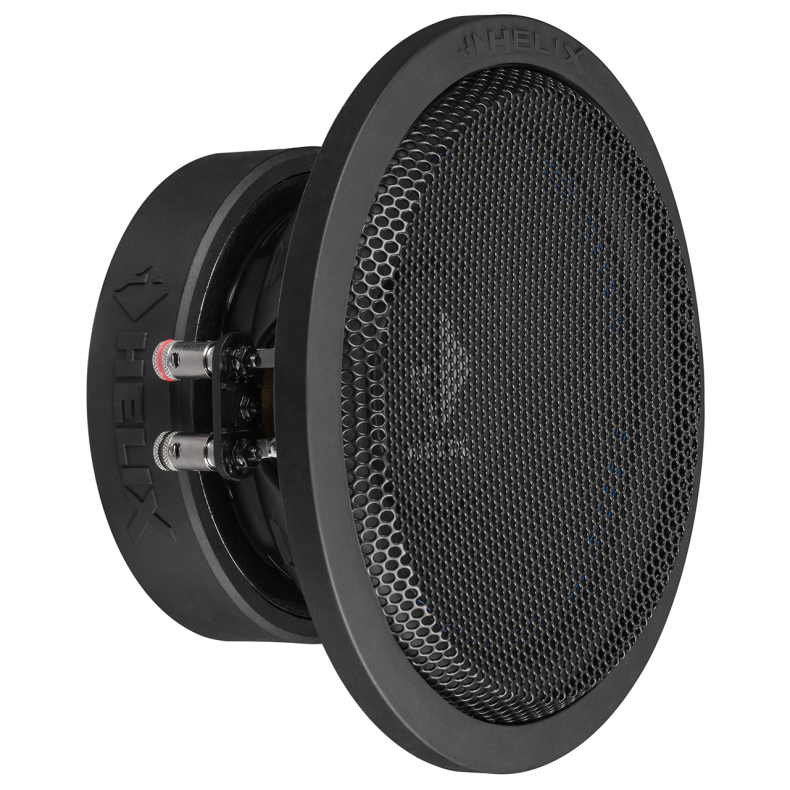

Helix K 8W
199.00 лв.
Helix K8W ,K10W и K12W са отличния избор за Вашия DIY проект. Само при поглед над T/S параметрите забелязваме, че моделите са подходящи за компактни басрефлексни обеми. Ако решите да заложите на сигурното, просто изберете същия обем и настройка на порта като готовите боксове Helix K10E и Helix K12E за отлично суббасово възпроизвеждане.
- Описание
- Допълнителна информация
- Отзиви (0)
Описание
Features
- Extremely stiff, hand-scooped paper cone
- Double ventilated voice coil for minimum compression effects and high power handling
- Rugged magnet cover with HELIX lettering for perfect magnet protection
- Long-excursion rubber surround for highest mechanical rating
- 2 x 2 Ohms dual voice coil for flexible system configuration
- Solid push terminals
- Powerful magnet system for compact vented enclosures
- Grille and gasket included in delivery
Technical data
| Power RMS / max. | P | 300 / 600 Watts |
| Impedance | Z | 2 x 2 Ω |
| DC resistance | Re | 2 x 1.6 Ω |
| Resonance frequency | Fs | 37 Hz |
| Mechanical Q factor | Qms | 3.56 |
| Electrical Q factor | Qes | 0.46 |
| Total Q factor | Qts | 0.41 |
| Compliance | Cms | 262 μm/N |
| Equivalent air volume | Vas | 17 L |
| Force factor | B*I | 10.7 Tm |
| Efficiency 1 W / 1 m | SPL | 86.0 dB |
| Cone area | Sd | 219 cm² |
| Moving mass | Mms | 69 g |
| Cone material | Hand-scooped paper cone | |
| Mechanical resistance | Rms | 4.54 kg/s |
| Voice coil diameter | ø | 50.8 mm |
| Voice coil winding height | 24 mm | |
| Max. linear excursion | Xmax | +/- 8.0 mm |
| Outer diameter | ø | 213 mm / 8.38″ |
| Installation diameter | ø | 182 mm / 7.17″ |
| Installation depth | 101 mm / 3.98″ | |
| Recommended enclosure volumes | ||
| Sealed box | ||
| Net volume | 8 L | |
| Lower limiting frequency (-3dB) | 50 Hz | |
| Recommended DSP settings | Recommended „self-define“ highpass filter with 50 Hz cut-off frequency and Q = 1.5, additional EQ filter 115 Hz / Q = 1.0 / -2.5 dB |
|
| Vented box | ||
| Net volume | 8 L | |
| Port diameter | ø | 60 mm / 2.36″ |
| Port area | 28 cm² | |
| Port length | 42 cm / 16.5″ (angled port) | |
| Port tuning frequency | Fb | 43 Hz |
| Lower limiting frequency (-3dB) | 45 Hz | |
| Recommended DSP settings | Recommended „self-define“ highpass filter with 43 Hz cut-off frequency and Q = 1.5, additional EQ filter 120 Hz / Q = 0.8 / -3.5 dB |
Scope of delivery
1 x Subwoofer HELIX K 8W
1 x Grille
1 x Gasket
1 x Data sheet
1 x Grille
1 x Gasket
1 x Data sheet
