Helix M Four – 24V Edition
469.00 лв.
4-канален усилвател Helix M Four – 24V Edition / 4 x 100RMS @ 4 Ohms / class D
- Описание
- Отзиви (0)
Описание
HELIX M FOUR – 24V Edition
If you like to rev up your front and rear speakers, the M FOUR – 24V Edition will be exactly the right „tool“ to do so. With generously 100 Watts RMS per channel into both 4 Ohms and 2 Ohms load this amp will heat up your voice coils in no time despite its super-compact dimensions. On the other hand the M FOUR – 24V Edition stays totally cool thanks to the highly efficient Class D design topology. 3-channel or 2-channel configurations are possible as well, delivering up to 2 x 200 Watts RMS of clean and undistorted output power.
Needless to say that the M FOUR – 24V Edition is equipped with a bunch of intelligent attributes like „start-stop capability“ and our proprietary „ADEP“ highlevel input so that it easily deals with all installation challenges of modern cars. Finally the extensive audio features will offer a sound quality at its best.
Smart highlevel input
The latest generation of OE car radios incorporates sophisticated possibilities of diagnosing the connected speakers. If a common amplifier will be hooked up failure messages and loss of specific features (e.g. fader function) quite often appear – but not with the M FOUR – 24V Edition.
The new ADEP circuit (Advanced Diagnostics Error Protection) avoids all these problems without loading the speaker outputs of the OE radio during high volumes unnecessarily.
Start-Stop capability
The switched power supply of the HELIX M FOUR – 24V Edition assures operation even if the battery’s voltage drops down to 12 Volts during engine crank.
| Dimensions (H x W x D) | 50 x 230 x 154 mm / 2.00 x 9.06 x 6.06” |
2 години гаранционен срок.
Характеристики
- – Small footprint Class D amplifier with high output power of 100 Watts RMS @ 4 and 2 Ohms load
- – Start-Stop capability down to 12V supply voltage
- – Smart highlevel input with ADEP circuit (Advanced Diagnostics Error Protection) and Auto Turn-On function
- – Integrated, active crossover with highpass, lowpass and bandpass
- – “Input mode” switch for flexible input signal routing
- – SMD (Surface Mounted Device) manufacturing technology combines minimum space requirement with maximum reliability.
- – Exclusive, extremely compact and clean design with illuminated HELIX-logo and low heat dissipation thanks to extraordinary efficiency
Технически данни
- – Output power RMS ≤ 1% THD+N – @ 4 Ohms 4 x 100 Watts
- – Output power RMS ≤ 1% THD+N – @ 2 Ohms 4 x 100 Watts
- – Output power RMS ≤ 1% THD+N – bridged @ 4 Ohms 2 x 200 Watts
- – Max. output power per channel* Up to 135 Watts RMS @ 4 / 2 Ohms

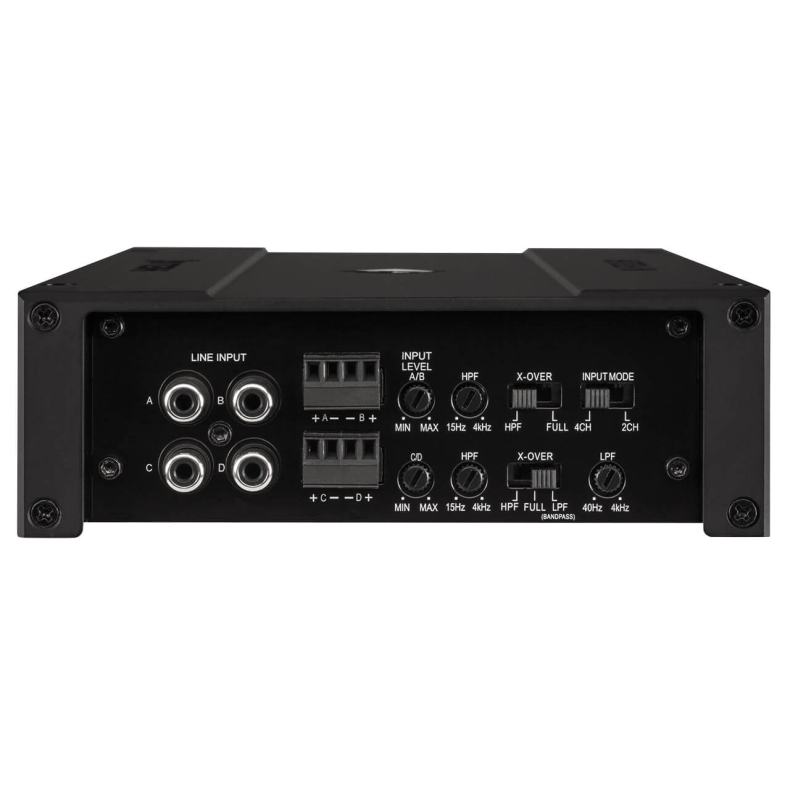

- – Inputs 4 x RCA / Cinch 4 x Highlevel speaker input 1 x Remote In
- – Input sensitivity RCA / Cinch 0.5 – 6 Volts Highlevel 1.3 – 13 Volts
- – Input impedance RCA / Cinch – 20 kOhms
- – Input impedance highlevel – 9 – 33 Ohms

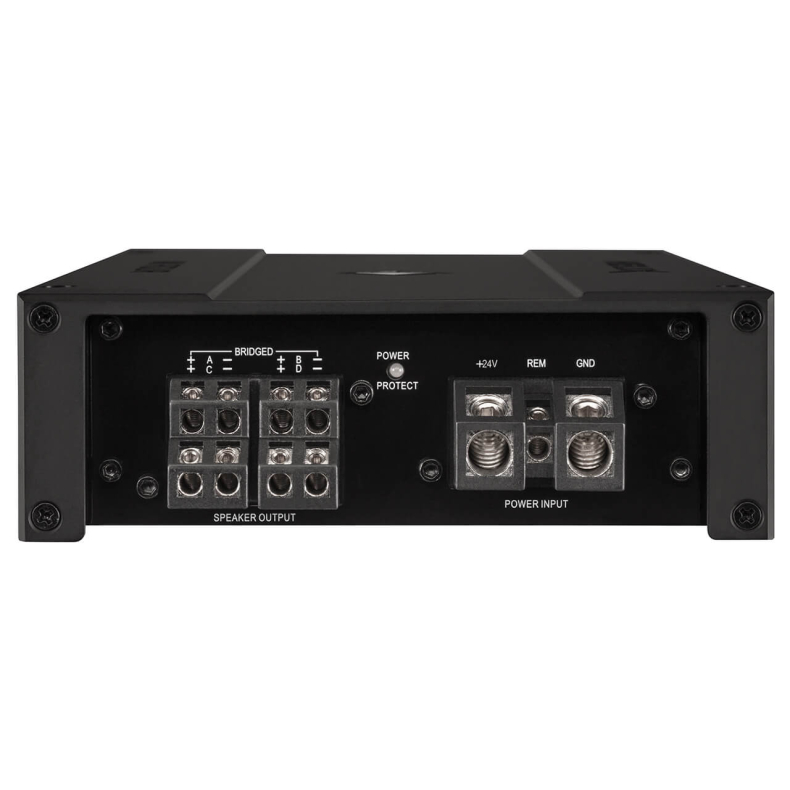

- – Outputs – 4 x Speaker output
- – Frequency response – 10 Hz – 30,000 Hz
- – Highpass 15 Hz – 4,000 Hz adjustable
- – Lowpass 40 Hz – 4,000 Hz adjustable
- – Bandpass 15 Hz – 4,000 Hz adjustable
- – Slope subsonic / lowpass – 12 dB/Oct.
- – Signal-to-noise ratio analog input – 98 dB (A-weighted)
- – Distortion – < 0,05 %
- – Damping factor – 100
- – Operating voltage 18 – 36 Volts (max. 5 sec. down to 12 Volts)
- – Idle current 550 mA
- – Operating temperature range -40° C to +70° C
- – Fuse 2 x 15 A Maxi-fuse (APX)
- – Power rating DC 24 V ⎓ 25 A max.
Какво има в кутията
1 x Amplifier HELIX M FOUR – 24V Edition
1 x Mounting material
1 x Instruction manual
